Plasma Arc Flow   Technology   (PAF)
The Plasma Arc Flow™ is a patented technology and fully commercialized based on flowing the target liquid waste through a submerged electric arc between two
electrodes. The arc decomposes the liquid molecules into atoms and forms a plasma around the tips of the electrodes at about 10,000°F / 5,500 °C. The Plasma Arc Flow
moves the plasma away from the electrodes and controls the formation of “MagneGas” that rises to the surface for collection.

« MagneGas » is a cost-competitive synthetic gas (syngas) made from many liquid wastes such as sewage, sludge, animal manure, glycerin, used antifreeze, some oil-based
liquids and waste water. MagneGas is a hydrogen-based fuel that has a combination of hydrogen, carbon monoxide and inert trace gases.

MagneGas exhaust has been certified by an automotive laboratory accredited with the U.S. Environmental Protection Agency (E.P.A.) to surpass all E.P.A. requirements
without a catalytic converter, and is the only fuel that produces oxygen when it burns, making it dramatically cleaner than gasoline, diesel, and natural gas. MagneGas is
composed of hydrogen (55-65%), carbon monoxide (30-35%), carbon dioxide (1-2%), water vapor (2%), and trace gases (0.5-1%).
Plasma-Arc-Flow

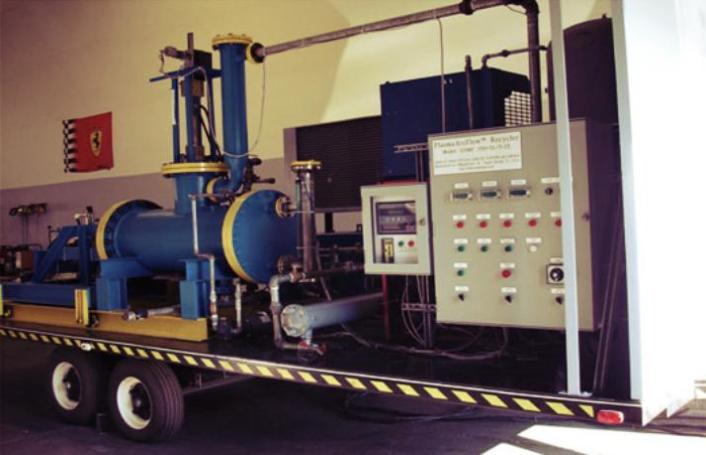

The Plasma Arc Flow     technology converts most liquid waste into a clean fuel called MagneGas or SynGas.
Refers to the newly-patented technology, consisting in flowing the liquid feedstock through a submerged electric arc, so as to prevent the recombination of hydrogen and
oxygen into water, increase fuel production and decrease CO
2 and other contaminants.

Total Mode

Refers to the use of PAF Recyclers in the continuous recirculation mode of the liquid feedstock through the electric arc until all molecules are decomposed by the arc and
converted to magnegas plus solid residues.

Linear Mode

Refers the use of PAF Recyclers via one single passage of the liquid feedstock through the arc and then its removal from the PAF module for downstream treatment. The
mode is recommended for bio-contaminated liquids with up to a maximum of 1 % TSS, such as city or ship sewage. The Linear Mode completely sterilizes the liquid
feedstock, produces "magnegas" by decreasing BOD and other contaminants, and polarizes the remaining liquid so as to admit much more efficient and less expensive
downstream treatments as per local needs.

Total/Linear Mode

Refer to the dual use of PAF Recyclers in the Total Mode (recirculation of liquid feedstock through the arc) generally fixed at 100 gpm in a 300 Kw recycler, and the use of
the Linear Mode (single passage) at a controllable, generally lower flow, such as 30 gpm. This dual mode allows the sterilization of highly contaminated liquid feedstock up
to 10% TSS, such as city sludge, farm bio-waste and other wastes by adapting the Linear Flow to the case at hand.
The PLASMA ARC FLOW™ process gasifies or sterilizes a number of liquid wastes into usable byproducts.

“GASIFICATION MODE”  is suitable to completely gasify target liquids for the maximum conversion of liquid to fuel and is most suitable for oily or hazardous wastes that
require elimination. The waste is converted into MagneGas and carbon precipitates. In this mode the liquid is completely gasified.
Industrial Gas

  •    INCREASE Productivity and Performance

  •    Provide your Workers with a much SAFER FUEL.

  •    Be recognized as a Green, ENVIRONMENTALLY FRIENDLY company.

  •    SAVE Significant Metal Loss due to MUCH LESS KERFING

  •    SAVE Money
“STERILIZATION MODE” is intended solely to sterilize target liquid wastes such as sewage, agricultural wastes or any effluent where eliminating bacteriological activity is
beneficial to convert the waste liquid into a fertilizer and irrigation water, results in the production of MagneGas, carbon precipitates and the same quantity of sterilized
liquid. In this mode the liquid is retained but completely sterilized.
